Nolato 8950 is a conductive silicone rubber.
? A two-component thermal cure silicone filled with conductive Ni/C particles.
? It is used to produce integrated EMI shielding gaskets by dispensing and Trishield 2.0 forming directly on telecom or other industrial components.
? The patented Trishield gasket* offers a triangularly shaped gasket with improved shielding properties.
? Low viscosity offers short cycle times in any dispensing machine.
? Excellent shielding combined with good mechanical properties.
? The aluminium compatible conductive filler offers enhanced galvanic corrosion resistance and stability in severe environments.
? Operating temperatures between -55?C and +125?C.
? Good adhesion to most metal and metallised surfaces.
? Typical gasket height from 1,2 mm and up to about 3 mm.
? Recommended compression between 10 and 50%.
2. Applications
? Nolato 8950 is particularly suitable for low cost production of gaskets on large series of aluminium castings when there is a demand of excellent shielding and an extra soft gasket
? Typical application is dispensed EMI shielding gaskets
3. Processing

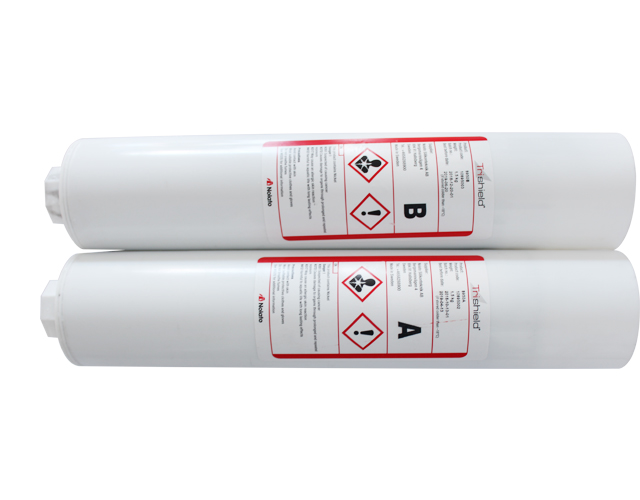

Nolato 8950 is a two-component compound of pasty consistency. The component A and B are delivered in 1000 ml cartridges with a shelf life of at least 6 month if stored at –18°C. The components are mixed in a ratio of 1:1 by weight prior to use. The mixed material is dispensed as a bead directly on the component with a standard dispensing machine. The dispensed gasket is given a narrow shape in the Trishield 2.0 forming unit. Curing is done in a hot air oven at 150°C for 30 minutes. For detailed information please refer to the “Mixing and handling instruction”.
4. Product data
* Production of Trishield gaskets requires a license from Nolato. The licence includes rights to produce and market Trishield gaskets and technical support and the special forming unit.

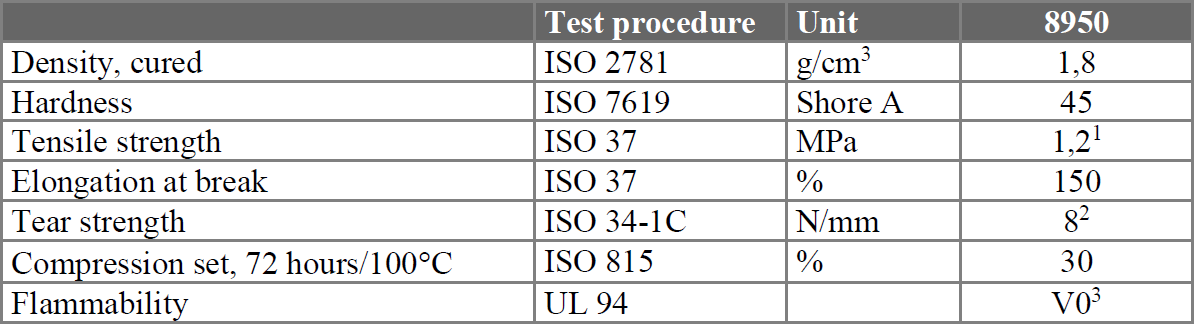

5. Mechanical properties
1 1 MPa = 145 psi 2 1 N/mm = 5,71 lb/in
3 Tested on a 0,8 mm thick gasket adhered to an aluminium substrate with a thickness of 2 mm.

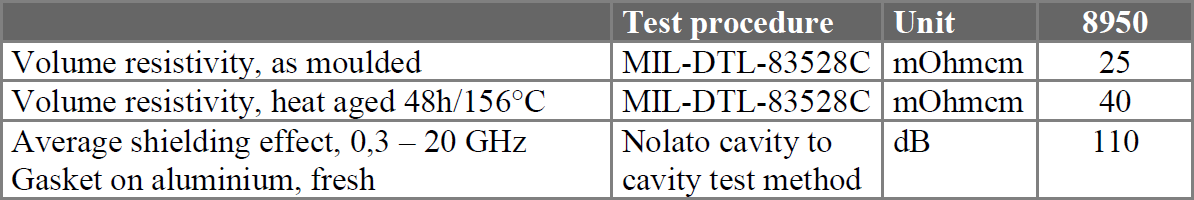

6. Electrical and shielding properties
7. RoHS information
Nolato 8950 fulfils the requirements set by the EU Directive 2011/65/EU (RoHS).
8. Safety instructions
Nolato 8950 is according to EU directive 1272/2008 (CLP) classified as harmful, class Xn, due to the content of nickel. Nickel may cause sensitisation by skin contact. It is advisory to never touch the gasket without gloves. A material safety data sheet can be sent on request.
9. Warranty
The data given in this product information should be taken only as a guide and not a specification. Data are based on statistical evaluation on data measured on a number of batches at Nolato.
The recommendations and data given are based on our experience to date, however, no liability can be assumed in connection with their usage and processing.
